200 Half Round

Standard Colours

For Designer, Metallic and Gloss colours, download the ColorCote® special colours brochure.

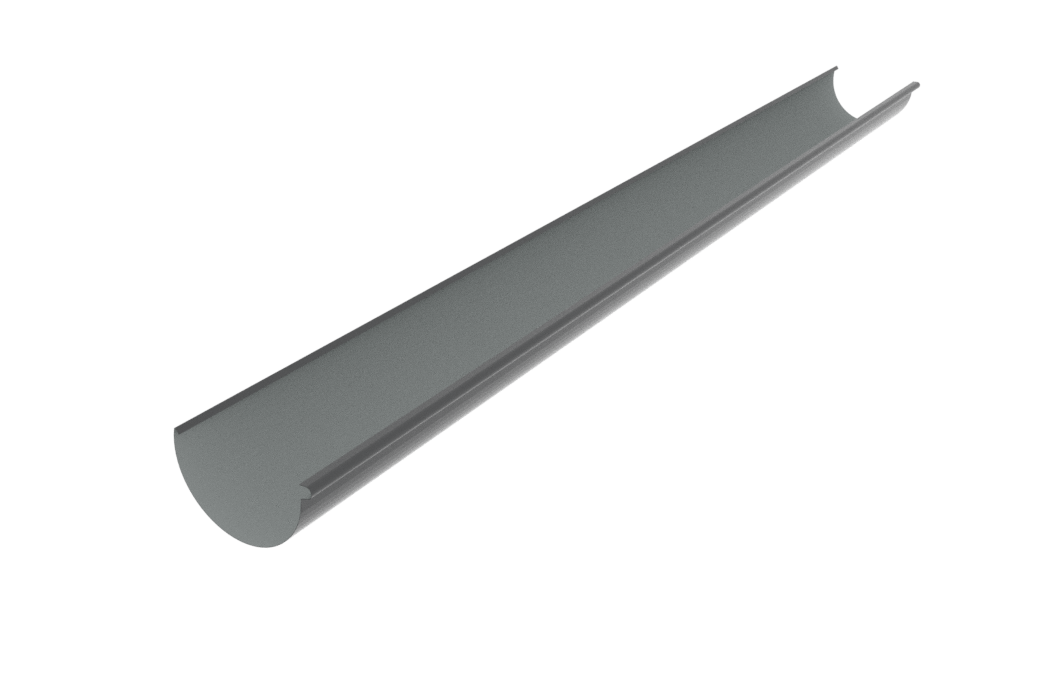

Black
Bracket type
External
Fasteners
Screw
Suitable for
Residential
Light Commercial
Manufactured in
Invercargill
Products may not be available outside of its manufacturing location, and freight and packing charges applied may vary depending on the location of manufacture and delivery point. To confirm availability and costs please contact Dimond prior to ordering.
Overview

200 Half Round Performance

Stylish and elegant, 200 Half Round gutter is available in a range of materials. This popular gutter profile can be found in a number of award-winning architectural designs.

All dimensions given are nominal.

Effective cross sectional area (with 10mm free board):
14,200mm²

Flow capacity
: 248 litres/min

Minimum recommended fall:
1:500 = 2mm in 1m

Minimum downpipe:

Circular - 80mm

Catchment area per downpipe based on the above flow capacity is given in Table 3.1M. Use Table 3.1B (Section 3.1.4 of Technical Manual) to determine the Rainfall Intensity to be used.

Rainfall Intensity, I (mm/hr)
Catchment Area per downpipe Ac (m2)
40
Catchment Area per downpipe Ac (m2)
371
50
Catchment Area per downpipe Ac (m2)
297
60
Catchment Area per downpipe Ac (m2)
247
70
Catchment Area per downpipe Ac (m2)
212
80
Catchment Area per downpipe Ac (m2)
185
90
Catchment Area per downpipe Ac (m2)
165
100
Catchment Area per downpipe Ac (m2)
148
120
Catchment Area per downpipe Ac (m2)
124
140
Catchment Area per downpipe Ac (m2)
106
160
Catchment Area per downpipe Ac (m2)
93
180
Catchment Area per downpipe Ac (m2)
83
200
Catchment Area per downpipe Ac (m2)
74

Material options including thickness and grade:
Steel 0.55mm G300
Copper 0.6mm Half hard

Manufacturing facility:
Invercargill
Note: only available in the South Island

Maximum length:
4.2m

Gutter bracket material and thickness:


External
*Stainless steel 3mm x 30mm Powder coated in matching colour.

External
Brass 2.5mm or 3.0mm x 50mm wide (for use with copper gutter)

Recommended maximum spacing:
900mm spacing (refer section 3.1.4.7 of Technical Manual for recommended spacing where snowfall is possible).
Snow straps available.

Recommended fixings:
Screw fastenings to be compatible with substrate and bracket material avoiding dissimilar metal contact.

*Note: A PVC barrier tape must be placed between the inside of the bracket and the spouting.
