AudioPerf®

Overview

AudioPerf® Performance




AudioPerf® is a perforated ceiling system for commercial applications and is manufactured from perforated metal of aluminium and rollformed into a wide range of profiles.


Developed for large and medium scale building applications, and particularly large span ceiling applications. AudioPerf® gives strong clean lines and bold symmetry with modern forms it is used to create dynamic shadows and can be integrated with bespoke flashings to create negative details and installation points for sprinklers, light units etc.

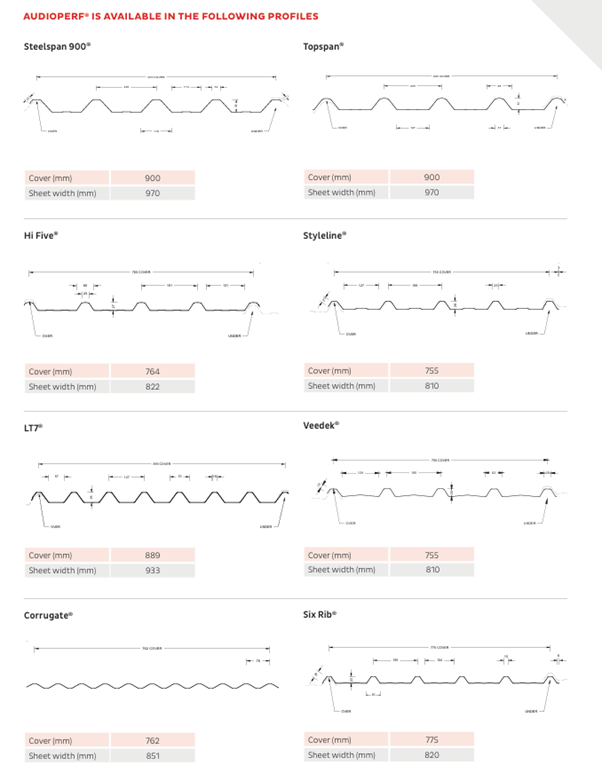

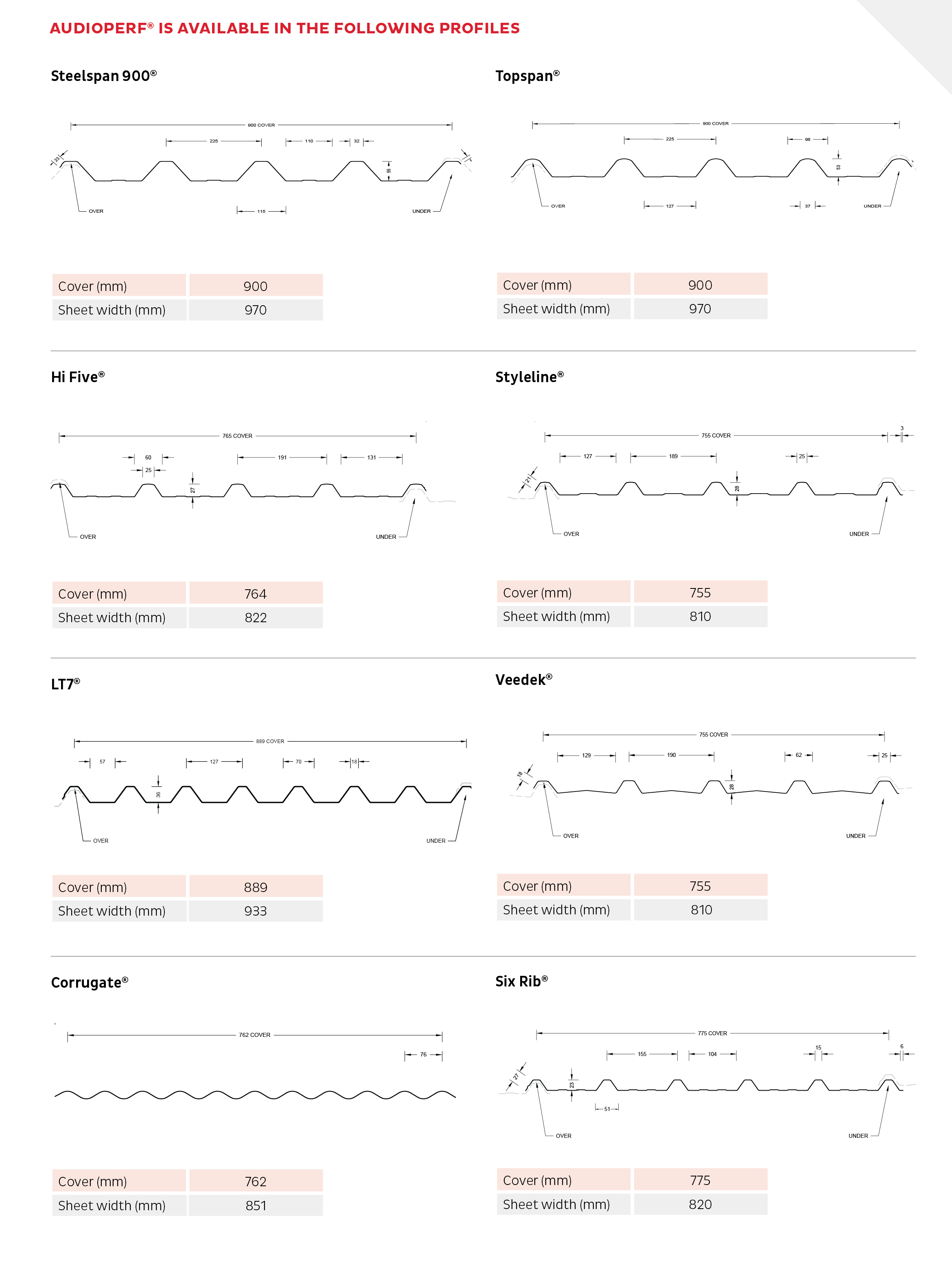

Profile range available:

  • Steelspan 900 & Topspan
  • LT7® & LT5
  • V-Rib
  • Hi Five
  • Six Rib
  • Corrugate


For profile and cover width information see relevant product page.


Material Thicknesses

  • 0.55mm AZ150 Coated Steel
  • 0.55mm MagnaFlow™
  • 0.90mm AlumiGard™

Sheet Tolerances
Sheet width: ±5mm
Sheet width for aluminium +0, -15mm. If sheet cover widths are critical, advise Dimond Roofing at time of order.
Sheet length: +10, - 0mm. For horizontal wall cladding where notified at time of order of intended use, tighter tolerances can be achieved +3, -0.

AudioPerf® Specifications - Maximum allowable spans for direct fixed ceiling applications (mm)
Material Options
Corrugate
Six Rib
Hi Five
V-Rib
LT7 & LT5
Steelspan / Topspan
** 0.55mm (G300)
Corrugate
1300
Six Rib
1350
Hi Five
1500
V-Rib
1600
LT7 & LT5
1600
Steelspan / Topspan
1700
Aluminium 0.70mm
Corrugate
1300
Six Rib
1350
Hi Five
1500
V-Rib
1600
LT7 & LT5
1600
Steelspan / Topspan
1700
Aluminium 0.90mm
Corrugate
1500
Six Rib
1650
Hi Five
1700
V-Rib
1800
LT7 & LT5
1800
Steelspan / Topspan
2000

**Indicates AZ150 Coated Steel, Pre-painted material and for internal (dry location) use.

Roll-forming facilities at: Auckland, Hamilton, Wellington, Christchurch and Invercargill, (LT5 is Wellington and Invercargill)



Curving facility at:
Contact Dimond Roofing.



Sheet lengths:
AudioPerf® is custom run to order.

Where long sheets are used, consideration must be given to:

  • Special transportation licences for sheet lengths over 16m
  • Site access for special lifting equipment


As the product is intended primarily as an internal ceiling material other uses should be considered carefully on an individual basis in consultation with Dimond Roofing, typical examples are:

  • External use such as veranda ceiling, decorative panels or back lit applications as wall cladding
  • Curved or Bull-nose applications
  • Internal wall cladding or areas exposed to physical contact or vandalism

Perforations

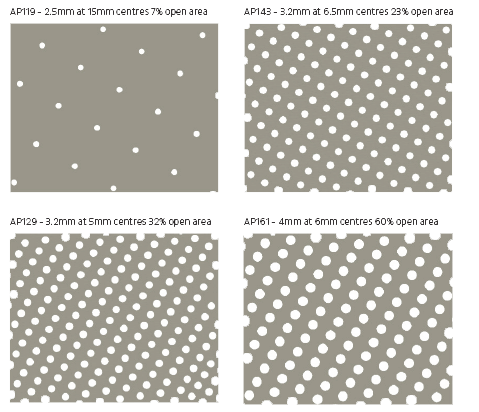

Perforations are available in three hole sizes and array pitches giving 7% to 33% open areas. Examples are shown below:
Note: For acoustic performance, P143C is recommended.


Span Data



The table on the front page cover, the installation onto metal battens using the material thickness, condition and perforation pattern specified. Note the span data assumes self-weight only and penetrations, inserts of other items should have loads reacted directly against structural members rather than imposed via the AudioPerf®. For small items (less than 3kg) where no more than 2 items exist on the same sheet these should be located near to battens (to avoid sag) and battens spans should be reduced by 20%.

Curved Ceilings


Sheets may be rolled over their width or sprung curved/ machine curved over their length, for corrugated profile the following should be maintained:

Width Curved: 1 metre radius

Sprung curved: 10 metre radius

Machine curved: 2 metre radius

Acoustic Performance


Testing of the ceiling system is to ASTM C423 and ASTM E1414. Independent laboratory testing of insulation materials can give an NRC value of up to 1.0; Testing of a typical complete system has shown the following NRC values:

  • P143C corrugate direct fixed with 25mm insulation = NRC 0.55
  • P143C corrugate direct fixed with 50mm insulation = NRC 0.70
  • P143C corrugate direct fixed with 75mm insulation = NRC 0.70
    (NRC = Noise Reduction Coefficient)

Fire Performance


The system when installed on metal purlins or battens complies with the New Zealand Building Code C/AS1 and has been specifically tested to AS1530.3 and meets the following:

Ignitability Index (Range 0-20) = 0

Spread of Flame (Range 0-10) = 0

Heat Evolved Index (Range 0-10) = 0

Smoke Developed Index (Range 0-10) = 3

Durability


All materials selected and supplied by Dimond Roofing are warranted for internal use only, to exceed the requirements of clause B.2.3 (1) of the first schedule to the Building Regulations 1992 for 15 years durability, providing the materials selected are suited to the environment and designed, detailed, and fixed and maintained in compliance with Dimond Roofing instructions, the Roofing Code of Practice and good trade practice.

Lengths

AudioPerf® is made to custom long run lengths. Where these exceed 16 metres, they may require special transport and handling facilities. For lengths over 24m, special Land Transport Safety Authority permission should be sought at design stage.


Flashings


Standard flashings are available for each profile. Attention is drawn to use of matching flashing material in contact with the AudioPerf®. In addition, curved flashings are available to suit curved or sprung ceilings.


Fixing


Fasteners for internal use shall be 12g x 20mm steel or 12g x 25mm timbertite and be pan fixed.


Maintenance



No specific maintenance is required for internal use than an annual removal of dust with a mild detergent.

Avoid the product being prolonged contact with debris that could hold moisture

Regularly hose down and clean any areas showing accumulation of dirt salt other contaminants. Always use a non-abrasive brush. For moderate environments this should be carried out at least annually.

Avoid contact with, or discharge from dissimilar metals.

Failure to observe these guidelines may result in voiding the warranty and affect the durability of the product.

Terms & Conditions
Technical Manual
Product Data Sheet

Product Data Sheet


For specific design by profile please refer to the Technical Manual Section 2.1.4 or download the data sheet below.

Download Data Sheet
Product Technical Statement

Product Technical Statement



To help you get through the building consent process as quickly as possible, we have developed the Product Technical Statement (PTS) downloads to make it quick and easy for both Architects and Home Owners to access the documentation required.

The PTS downloads hold all of the information that the council requires for a building consent where Dimond product is specified.

Download Product Technical StatementLast updated May 2021
