165 Paltec Fascia

Standard Colours

For Designer, Metallic and Gloss colours, download the ColorCote® special colours brochure.

Black
Products may not be available outside of its manufacturing location, and freight and packing charges applied may vary depending on the location of manufacture and delivery point. To confirm availability and costs please contact Dimond prior to ordering.
Overview

165 Paltec Fascia Performance

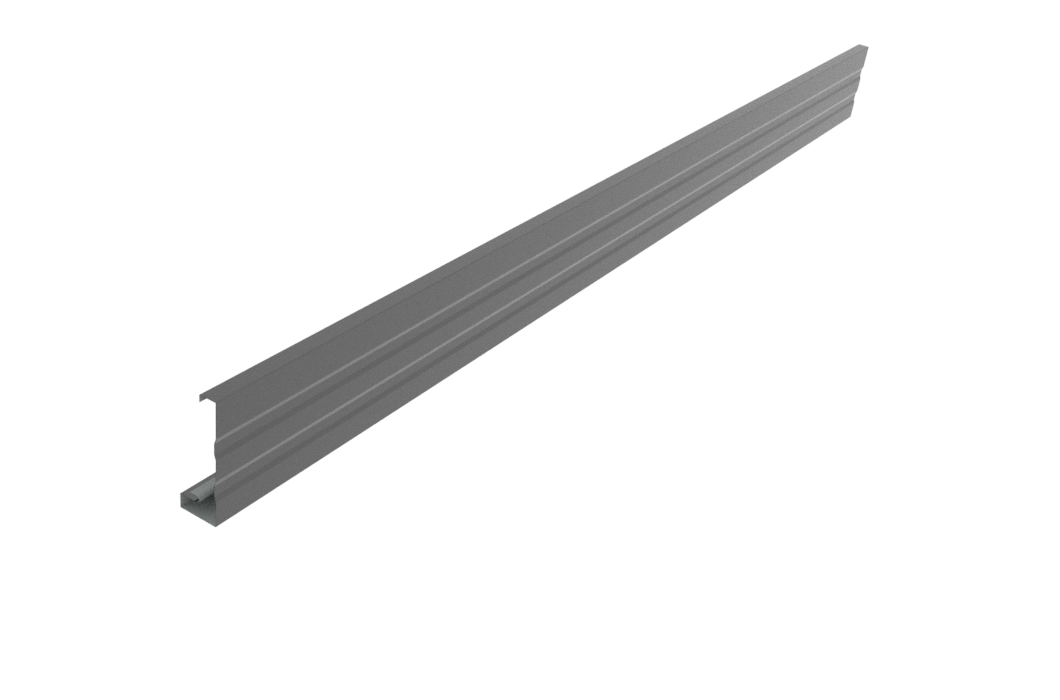

Originally released in the mid 1990’s, this steel based product with a face height of 165mm and a sole of 52mm provides a discrete appearance that enhances our gutter profiles. Suitable for most roofing installations, Paltec Fascia is widely used in the Central Otago and Southland areas.

All dimensions are nominal

Installation

165 Paltec Fascia Installation


Metal Tiles & Metal Roofs

Hip & Gable Roof – Eaves Detail
Soffit Width (mm)
Dimension 'A' (mm)
300
Dimension 'A' (mm)
295
450
Dimension 'A' (mm)
445
600
Dimension 'A' (mm)
595
750
Dimension 'A' (mm)
745
900
Dimension 'A' (mm)
895

Notes:

  • A 10mm soffit clearance has been allowed for:
  • Soffit bearers fixed to LEFT hand side of rafter (viewed from outside).
  • Based on minimum Purlin/Roof batten thickness of 45mm
Gable End Detail
Soffit Width (mm)
Dimension 'A' (mm)
300
Dimension 'A' (mm)
295
450
Dimension 'A' (mm)
445
600
Dimension 'A' (mm)
595

Notes:

Finished timber sizes

  • Outriggers 70mm x 45mm
  • Fly rafter 90mm x 45mm

Fascia brackets must be fitted to all rafters. The installation of gutter brackets and snow straps in snow areas is to be as per section 3.1.4.7 of the Dimond manual. Snow
areas N4 and N5 require 5 fasteners per Rafter bracket.

Drop Heights (Dimension C in mm) for Roof Pitch and Soffit Width
Roof Pitch(Degrees)
Soffit Width (mm) 300
Soffit Width (mm) 450
Soffit Width (mm) 600
Soffit Width (mm) 750
Soffit Width (mm) 900
Dim ‘B’Toe Cut
10
Soffit Width (mm) 300
73
Soffit Width (mm) 450
100
Soffit Width (mm) 600
127
Soffit Width (mm) 750
154
Soffit Width (mm) 900
184
Dim ‘B’Toe Cut
92
12.5
Soffit Width (mm) 300
87
Soffit Width (mm) 450
121
Soffit Width (mm) 600
155
Soffit Width (mm) 750
189
Soffit Width (mm) 900
223
Dim ‘B’Toe Cut
93
15
Soffit Width (mm) 300
101
Soffit Width (mm) 450
142
Soffit Width (mm) 600
183
Soffit Width (mm) 750
224
Soffit Width (mm) 900
265
Dim ‘B’Toe Cut
96
17.5
Soffit Width (mm) 300
115
Soffit Width (mm) 450
163
Soffit Width (mm) 600
211
Soffit Width (mm) 750
259
Soffit Width (mm) 900
307
Dim ‘B’Toe Cut
94
20
Soffit Width (mm) 300
129
Soffit Width (mm) 450
184
Soffit Width (mm) 600
239
Soffit Width (mm) 750
294
Soffit Width (mm) 900
349
Dim ‘B’Toe Cut
96
22.5
Soffit Width (mm) 300
145
Soffit Width (mm) 450
205
Soffit Width (mm) 600
265
Soffit Width (mm) 750
325
Soffit Width (mm) 900
385
Dim ‘B’Toe Cut
96
25
Soffit Width (mm) 300
155
Soffit Width (mm) 450
225
Soffit Width (mm) 600
295
Soffit Width (mm) 750
365
Soffit Width (mm) 900
435
Dim ‘B’Toe Cut
100
30
Soffit Width (mm) 300
189
Soffit Width (mm) 450
275
Soffit Width (mm) 600
361
Soffit Width (mm) 750
447
Soffit Width (mm) 900
53
Dim ‘B’Toe Cut
104
35
Soffit Width (mm) 300
220
Soffit Width (mm) 450
325
Soffit Width (mm) 600
430
Soffit Width (mm) 750
535
Soffit Width (mm) 900
640
Dim ‘B’Toe Cut
112
40
Soffit Width (mm) 300
253
Soffit Width (mm) 450
380
Soffit Width (mm) 600
507
Soffit Width (mm) 750
635
Soffit Width (mm) 900
762
Dim ‘B’Toe Cut
118
45
Soffit Width (mm) 300
293
Soffit Width (mm) 450
442
Soffit Width (mm) 600
591
Soffit Width (mm) 750
740
Soffit Width (mm) 900
889
Dim ‘B’Toe Cut
125

Notes for Installers

  1. To ensure birds cannot enter the roof space, there should be no gap between the bottom purlin and the back face of the gutter after the system has been installed.
  2. Over 25°roof pitch, a kickout may be required on all gable ends.
  3. As an alternative to note 3, for gable end roofs, outriggers to be from finished timber sizes 70mm x 45mm i.e. gable end truss drop 70mm, avoiding kickouts up to 40° roof pitch.
  4. NOTE: Soffit bearers are required on all hip corners and should be cut back 20mm to all free movement of the spouting.
  5. Zincalume coated gutters should have a minimum fall of at least 1:500 and should not have permanent ponding.
  6. Where loose fill insulation is used, the soffit must be blocked off at the top plate to prevent the insulation coming into contact with the metal fascia. Check with your nearest distributor for further details.
  7. Allows for a 16-18mm gap for easy fascia panel removal. If gap is not required dimensions will need to be altered.

Concrete Tile Roofs

Hip & Gable Roof – Eaves Detail
Soffit Width (mm)
Dimension 'A' (mm)
300
Dimension 'A' (mm)
295
450
Dimension 'A' (mm)
445
600
Dimension 'A' (mm)
595

Notes:

  • A 10mm soffit clearance has been allowed for:
  • Soffit bearers fixed to LEFT hand side of rafter (viewed from outside).
  • Based on minimum Purlin/Roof batten thickness of 45mm
Gable End Detail
Soffit Width (mm)
Dimension 'A' (mm)
300
Dimension 'A' (mm)
295
450
Dimension 'A' (mm)
445
600
Dimension 'A' (mm)
595

Notes:

Finished timber sizes

  • Outriggers 70mm x 45mm
  • Fly rafter 90mm x 45mm

Fascia brackets must be fitted to all rafters. The installation of gutter brackets and snow straps in snow areas is to be as per section 3.1.4.7 of the Dimond manual. Snow areas N4 and N5 require 5 fasteners per Rafter bracket.

Drop Heights (Dimension C in mm) for Roof Pitch and Soffit Width
Roof Pitch(Degrees)
Soffit Width (mm) 300
Soffit Width (mm) 450
Soffit Width (mm) 600
Soffit Width (mm) 750
Soffit Width (mm) 900
Dim ‘B’Toe Cut
17.5
Soffit Width (mm) 300
109
Soffit Width (mm) 450
162
Soffit Width (mm) 600
209
Soffit Width (mm) 750
260
Soffit Width (mm) 900
309
Dim ‘B’Toe Cut
95
20
Soffit Width (mm) 300
125
Soffit Width (mm) 450
185
Soffit Width (mm) 600
238
Soffit Width (mm) 750
295
Soffit Width (mm) 900
352
Dim ‘B’Toe Cut
96
22.5
Soffit Width (mm) 300
138
Soffit Width (mm) 450
202
Soffit Width (mm) 600
267
Soffit Width (mm) 750
332
Soffit Width (mm) 900
396
Dim ‘B’Toe Cut
99
25
Soffit Width (mm) 300
155
Soffit Width (mm) 450
227
Soffit Width (mm) 600
300
Soffit Width (mm) 750
373
Soffit Width (mm) 900
445
Dim ‘B’Toe Cut
100
30
Soffit Width (mm) 300
191
Soffit Width (mm) 450
268
Soffit Width (mm) 600
355
Soffit Width (mm) 750
441
Soffit Width (mm) 900
528
Dim ‘B’Toe Cut
104
35
Soffit Width (mm) 300
220
Soffit Width (mm) 450
327
Soffit Width (mm) 600
435
Soffit Width (mm) 750
544
Soffit Width (mm) 900
651
Dim ‘B’Toe Cut
111
40
Soffit Width (mm) 300
251
Soffit Width (mm) 450
378
Soffit Width (mm) 600
502
Soffit Width (mm) 750
628
Soffit Width (mm) 900
756
Dim ‘B’Toe Cut
118
45
Soffit Width (mm) 300
285
Soffit Width (mm) 450
430
Soffit Width (mm) 600
574
Soffit Width (mm) 750
719
Soffit Width (mm) 900
836
Dim ‘B’Toe Cut
125

Notes for Installers

  1. To ensure birds cannot enter the roof space, there should be no gap between the bottom purlin and the back face of the gutter after the system has been installed.
  2. For concrete tile gable end roofs, outriggers to be from finished timber sizes 70mm x 45mm i.e. gable end truss drop 70mm.
  3. Over 25o roof pitch, a kickout is required on all gable ends.
  4. NOTE: Soffit bearers are required on all hip corners and should be cut back 20mm to allow free movement of the spouting.
  5. Zincalume coated gutters should have a minimum fall of at least 1:500 and should not have permanent ponding.
  6. Where loose fill insulation is used, the soffit must be blocked off at the top plate to prevent the insulation coming into contact with the metal fascia. Check with your nearest distributor for further details.
  7. Allows for a 16-18mm gap for easy fascia panel removal. If gap is not required dimensions will need to be altered.
