185 Fascia

Standard Colours

For Designer, Metallic and Gloss colours, download the ColorCote® special colours brochure.

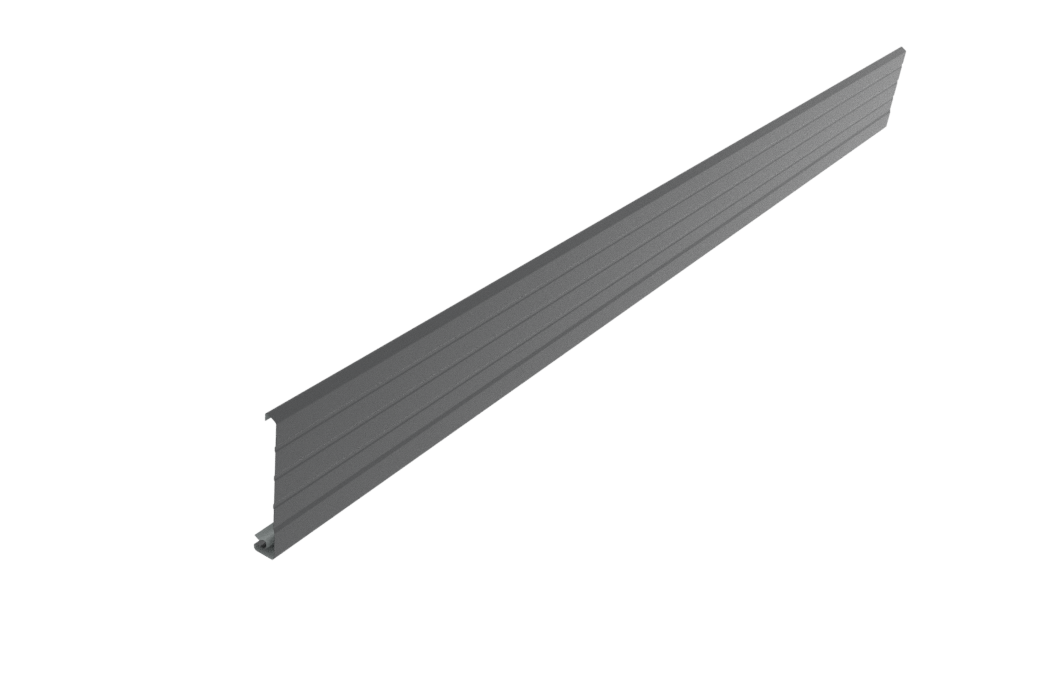

Black
Terms & Conditions

185 Fascia Performance




The 185 Fascia clip on/clip off system makes installation and removal easy and can be used with the Quad SI, Deep Quad and Classic 125 gutters. Extra strong design using 0.55mm prepainted steel. Available nationwide.

All dimensions are nominal

185 Fascia Installation

Metal Tiles & Metal Roofs

IMAGES

Hip & Gable Roof – Eaves Detail
Soffit Width (mm)
Dimension ‘A’ (mm)
300
Dimension ‘A’ (mm)
295
450
Dimension ‘A’ (mm)
445
600
Dimension ‘A’ (mm)
595

Notes:

  • 90x45 soffit bearer used unless stated.
  • Soffit bearers fixed to right or left hand side of rafter.
  • 10mm clearance allowed for soffit.
Gable End Detail
Soffit Width (mm)
Gable End Detail
300
Gable End Detail
295
450
Gable End Detail
445
600
Gable End Detail
595

In heavy snowfall and wind areas, brackets and snow traps must be fixed at 450mm centres. In medium wind areas it is advisable to fix the brackets at 600mm centres maximum.

Drop Heights (Dimension C in mm) for Roof Pitch and Soffit Width
Roof Pitch(Degrees)
Soffit Width (mm) 300
Soffit Width (mm) 450
Soffit Width (mm) 600
Soffit Width (mm) 750
10
Soffit Width (mm) 300
95
Soffit Width (mm) 450
123
Soffit Width (mm) 600
151
Soffit Width (mm) 750
179
12.5
Soffit Width (mm) 300
107
Soffit Width (mm) 450
140
Soffit Width (mm) 600
173
Soffit Width (mm) 750
206
15
Soffit Width (mm) 300
120
Soffit Width (mm) 450
160
Soffit Width (mm) 600
200
Soffit Width (mm) 750
240
17.5
Soffit Width (mm) 300
133
Soffit Width (mm) 450
180
Soffit Width (mm) 600
227
Soffit Width (mm) 750
274
20
Soffit Width (mm) 300
145
Soffit Width (mm) 450
200
Soffit Width (mm) 600
254
Soffit Width (mm) 750
309
22.5
Soffit Width (mm) 300
160
Soffit Width (mm) 450
222
Soffit Width (mm) 600
284
Soffit Width (mm) 750
346
25
Soffit Width (mm) 300
173
Soffit Width (mm) 450
243
Soffit Width (mm) 600
313
Soffit Width (mm) 750
383
27.5
Soffit Width (mm) 300
188
Soffit Width (mm) 450
266
Soffit Width (mm) 600
344
Soffit Width (mm) 750
422
30
Soffit Width (mm) 300
202
Soffit Width (mm) 450
289
Soffit Width (mm) 600
376
Soffit Width (mm) 750
463
35
Soffit Width (mm) 300
233
Soffit Width (mm) 450
338
Soffit Width (mm) 600
443
Soffit Width (mm) 750
548
40
Soffit Width (mm) 300
268
Soffit Width (mm) 450
394
Soffit Width (mm) 600
520
Soffit Width (mm) 750
646
45
Soffit Width (mm) 300
306
Soffit Width (mm) 450
456
Soffit Width (mm) 600
606
Soffit Width (mm) 750
756
50
Soffit Width (mm) 300
350
Soffit Width (mm) 450
529
Soffit Width (mm) 600
708
Soffit Width (mm) 750
887

Note for Installers

  1. To ensure birds cannot enter the roof space, there should be no gap between the bottom purlin and the back face of the gutter after the system has been installed.
  2. NOTE: Soffit bearers are required on all hip corners and should be cut back 10mm.
  3. Where loose fill insulation is used, the soffit must be blocked off at the top plate to prevent the insulation coming into contact with the metal fascia.
  4. Zincalume coated gutters should have a minimum fall of at least 1:500 and should not have permanent ponding. Check with your nearest distributor for further details.

Concrete Tile Roofs

IMAGES

Hip & Gable Roof – Eaves Detail
Soffit Width (mm)
Dimension ‘A’ (mm)
300
Dimension ‘A’ (mm)
295
450
Dimension ‘A’ (mm)
445
600
Dimension ‘A’ (mm)
595

Notes:

  • 90x45 soffit bearer used unless stated.
  • Soffit bearers fixed to right or left hand side of rafter.
  • 10mm clearance allowed for soffit.
Gable End Detail
Soffit Width (mm)
Gable End Detail
300
Gable End Detail
295
450
Gable End Detail
445
600
Gable End Detail
595

In heavy snowfall and wind areas, brackets and snow traps must be fixed at 450mm centres. In medium wind areas it is advisable to fix the brackets at 600mm centres.

Drop Heights (Dimension C in mm) for Roof Pitch and Soffit Width
Roof Pitch(Degrees)
Soffit Width (mm) 300
Soffit Width (mm) 450
Soffit Width (mm) 600
Soffit Width (mm) 750
17.5
Soffit Width (mm) 300
107
Soffit Width (mm) 450
154
Soffit Width (mm) 600
201
Soffit Width (mm) 750
248
20
Soffit Width (mm) 300
118
Soffit Width (mm) 450
173
Soffit Width (mm) 600
227
Soffit Width (mm) 750
282
22.5
Soffit Width (mm) 300
133
Soffit Width (mm) 450
195
Soffit Width (mm) 600
257
Soffit Width (mm) 750
319
25
Soffit Width (mm) 300
145
Soffit Width (mm) 450
215
Soffit Width (mm) 600
285
Soffit Width (mm) 750
355
27.5
Soffit Width (mm) 300
160
Soffit Width (mm) 450
238
Soffit Width (mm) 600
316
Soffit Width (mm) 750
434
30
Soffit Width (mm) 300
173
Soffit Width (mm) 450
260
Soffit Width (mm) 600
347
Soffit Width (mm) 750
434
35
Soffit Width (mm) 300
202
Soffit Width (mm) 450
307
Soffit Width (mm) 600
412
Soffit Width (mm) 750
517
40
Soffit Width (mm) 300
235
Soffit Width (mm) 450
361
Soffit Width (mm) 600
487
Soffit Width (mm) 750
613
45
Soffit Width (mm) 300
271
Soffit Width (mm) 450
421
Soffit Width (mm) 600
571
Soffit Width (mm) 750
721

Notes for Installers

  1. To ensure birds cannot enter the roof space, there should be no gap between the bottom purlin and the back face of the gutter after the system has been installed.
  2. 185mm External Fascia and Gutter is not suitable on concrete tile roofs with sloping soffits.
  3. NOTE: Soffit bearers are required on all hip corners and should be cut back 10 mm.
  4. The use of concrete tiles on the barge ends is not a recommended practice as highlighted in the NZ Metal Roofing and Cladding Code of Practice Section 2 under
    Compatibility 2.7.2. Should people continue to use this method then there should be some sort of barrier between the two and there is no warranty offered by
    Pacific Coil Coaters or New Zealand Steel for corrosion if this method is used. This means that all installations should have a bottom batten around the edge of the roof line rather than let the concrete tile rest on the fascia.
  5. Where loose fill insulation is used, the soffit must be blocked off at the top plate to prevent the insulation coming into contact with the metal fascia.
  6. Zincalume coated gutters should have a minimum fall of at least 1:500 and should not have permanent ponding. Check with your nearest distributor for further details.
