DimondClad® Rib 20
Dimondclad is a versatile cladding solution for exterior and interior cladding. Rib 20 offers wide pans and narrow ribs.
- Product Details
- Ribs per sheet10
- Cover width779mm
- Sheet width810mm
- Suitable ForResidential
Light Commercial
Commercial - Manufactured InHamilton
Overview
Dimonclad Rib 20 Performance
If versatility is what you are after then Dimondclad is the perfect cladding solution. Dimondclad's clean, efficient lines and well concealed laps are excellent for both exterior and interior cladding. Dimondclad Rib 20 features wide pans and narrow ribs for defined cladding lines.

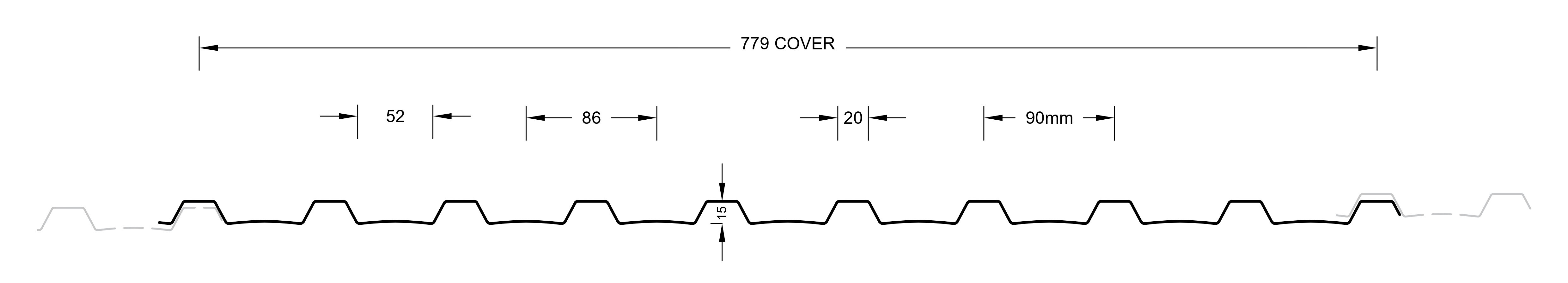

Cover (mm)
Sheet Width (mm)
Minimum Pitch
779
Sheet Width (mm)
810
Minimum Pitch
Wall cladding only
All dimensions given are nominal
Sheet Tolerances
Sheet width: ±5mm
Sheet length: +10mm, –0mm. For horizontal wall cladding where notified at time of order of intended use, tighter tolerances can be achieved +3mm, –0mm.
Material Option Thickness (BMT)
Steel 0.40mm
Aluminium 0.90mm
Nominal weight/lineal metre (kg/m)
Steel 0.40mm
3.17
Aluminium 0.90mm
2.28
Unsupported overhang (1) (mm)
Steel 0.40mm
100
Aluminium 0.90mm
100
(1) Not intended to support point loads.
Roll-forming facility at: Hamilton
Sheet lengths: Dimondclad Rib 20 is custom run to order.
Where long sheets are used consideration must be given to:
- Special transportation licences for sheet lengths over 25m
- Site access for special lifting equipment
- Fixing techniques to accommodate thermal expansion.
